BETAFPV Meteor75 Pro Brushless Whoop Quadcopter(2024) Camera Drones RC Helicopter

Retaining its impressive 45mm propellers, powerful 1102 22000KV motors, and a BT2.0 550mAh 1S battery, the Meteor75 Pro continues to lead as the largest 1S whoop with exceptional thrust and agility. The upgraded Matrix 1S Flight Controller enhances performance with a G473 processor for a 55% speed boost and an integrated 5.8GHz 400mW VTX. Its durable 1mm-thick board and built-in motor plugs make installation easier and improve robustness. Paired with the same ESC, motor, C03 FPV camera, and Micro Canopy as the Meteor75, this combo enhances versatility, making it ideal for both indoor and outdoor FPV racing and freestyle.

Bullet Points

• The upgraded Matrix 1S Brushless Flight Controller brings exceptional durability and performance to the Meteor75 Pro. It features a G473 processor, boosting computing speed by 55%, along with an integrated 5.8GHz 400mW VTX for seamless integration. Its robust 1mm-thick board adds durability, and the built-in motor plugs simplify installation, making it ideal for beginners while ensuring excellent performance for FPV racing and freestyle.

• The upgraded frame that fits 45mm props perfectly makes Meteor75 Pro the largest 1S whoop drone. Powered with 1102 22000KV motors, it performs smoothly in the air and is maneuverable for freestyle tricks.

• It features a roomier battery slot that can accommodate a bigger battery such as BT2.0 550mAh 1S battery, which provides a larger capacity and higher discharge rate, bringing more flight time and robust flight performance to the quadcopter.

• Built-in 1.45g ultralight weight and upgraded C03 FPV camera. This new camera has optimal performance for indoor whoop drones.

• Adopt with injection molding technique, this canopy is 1.60g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.

• The various colors of the spare parts including the Meteor75 Pro frame and micro canopy, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.

Specifications

• Motors: 1102 22000KV Motor

• Battery: BT2.0 550mAh 1S Battery

• Frame: Meteor75 Pro Brushless Whoop Frame

• Propellers: Gemfan 45mm 3-Blade Propellers

• Camera: C03 FPV Camera

• Tilt: 30°/20°

• Canopy: Canopy for Micro Camera 2022 version

• FC&ESC: Matrix 1S Brushless Flight Controller

• Receiver: Integrated Serial ELRS 2.4G

• VTX: Onboard 5.8GHz 48 Channels, 400mW

• Flight time: 6:30

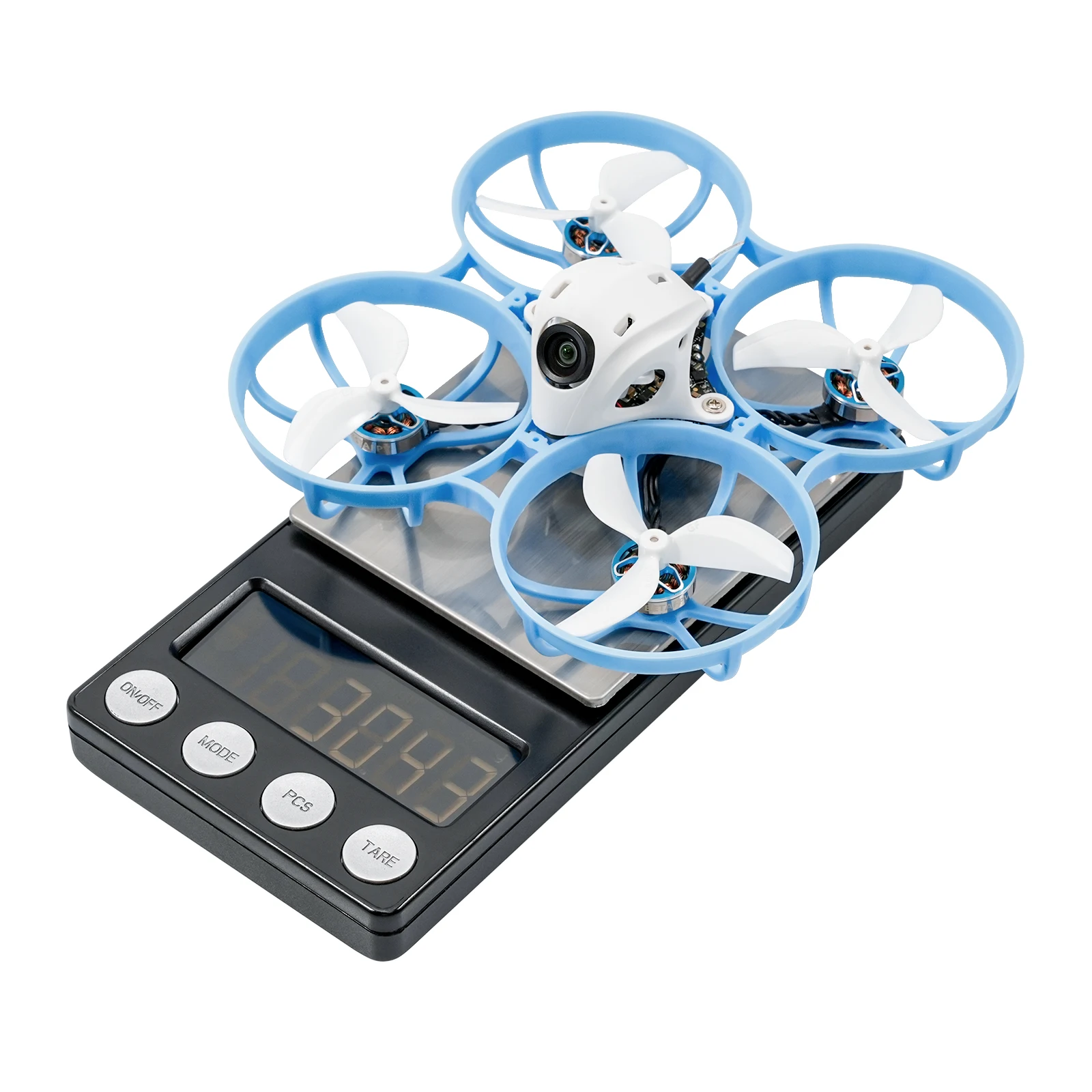

• Weight: 30.5g

Meteor75 Pro VS Air75

The new Meteor75 Pro, equipped with the upgraded Matrix 1S Brushless Flight Controller, delivers enhanced performance with a G473 processor for 55% faster computing over the old version, a durable 1mm-thick board, integrated 5.8GHz 400mW VTX, and motor plugs for easier installation. Built for durability and beginner-friendliness, it requires no welding, making it an ideal choice for those prioritizing resilience and simplicity. In contrast, the Air75 Brushless Whoop Quadcopter is lighter, with a 75mm wheelbase, catering to advanced pilots seeking agility and performance to push the limits of their FPV experience.

Powerful 1S Drone Combo

Meteor75 Pro with 45mm 3-Blade props performs very precise, agile, and fantastic flying, which is the largest 1S power whoop drone nowadays. Fit out with 1102 22000KV motors and BT2.0 550mAh 1S battery, Meteor75 Pro has an excellent thrust-to-weight ratio performance.

Flight Controller

The Meteor75 Pro, now featuring the Matrix 1S Brushless Flight Controller, combines enhanced durability, processing power, and adaptability for a superior 1S whoop experience. Its 1mm-thick circuit board increases resilience during intense flying, while the G473 processor enhances response speed and control precision. Simplified setup is achieved through integrated motor plugs, and its 5.8GHz 400mW VTX delivers stable, high-quality video transmission. Perfect for both indoor and outdoor FPV racing or freestyle, this high-performance drone is built for versatility and reliability.

The following information on the F4 1S 5A Flight Controller has been retained for your reference:

The latest F4 1S 5A flight controller is applied to all BNF versions of Meteor75 Pro. It features Serial ELRS 2.4G instead of SPI ELRS 2.4G for ELRS version compared to the previous version. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP. The ESC on the new board is powered by BB51 hardware in place of BB21. Last but not least, we update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.

Note: For Serial ELRS 2.4G, the Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For SPI Frsky, DO NOT flash the other firmware, otherwise, the RX will be lost in control at a very close range. Please flash betaflight_4.2.11_BETAFPVF411RX firmware built by BETAFPV for SPI Frsky.

C03 FPV Camera

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3” CMOS sensor for clear and brilliant images.

Endurance Boosting Battery

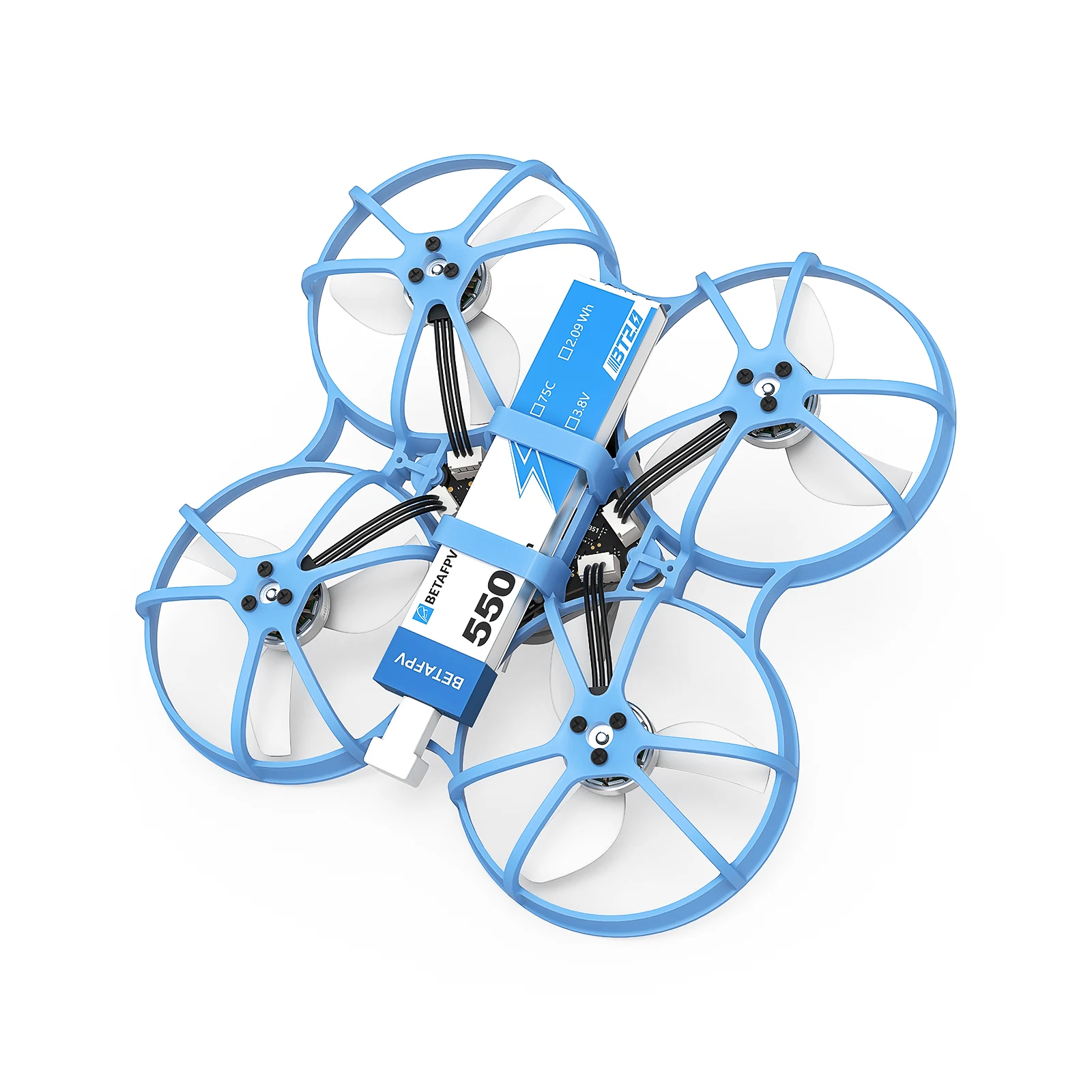

Meteor75 Pro applies the new BT2.0 550mAh 1S battery, which is capable of delivering a discharge rate of 40C (continuous) and 80C (burst). With its larger capacity and stronger power, pilots can enjoy more flight time and a robust flight experience.

Meteor75 Pro Frame

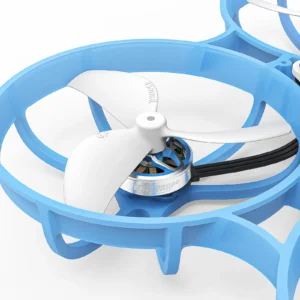

Meteor75 Pro frame is the largest 1S whoop frame with 45mm propellers currently and comes with more features. The frame features a roomier battery slot for more battery choices such as BT2.0 550mAh battery. The motor holder is using a triangle bilateral stretch structure, giving pilots a more durable and smoother flight experience. In addition, the Meteor75 Pro frame offers seven colors for options, which pilots should purchase separately.

Meteor Series

BETAFPV aims to provide the best whoop quadcopters for pilots and Meteor Series whoop quadcopters are definitely the perfect balance in all areas of performance. From 1S to 2S, indoors to outdoors, whether agility, maneuverability, speed, or stability, Meteor series whoop drones meet the needs of a variety of flight environments and offer excellent experiences to pilots. The latest Meteor75 Pro with 45mm props, being the largest 1S whoop, is proud of its performance both indoors and outdoors.

Recommended Parts

Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE

Battery: BT2.0 550mAh Battery, BT2.0 450mAh Battery

Props: Gemfan 45mm 2-Blade&3-Blade Propellers (1.5mm Shaft 4PCS)

Colorful Frame: Meteor75 Pro Brushless Whoop Frame

Colorful Canopy: Canopy for Micro Camera 2022

Sticker: BETAFPV Waterslide Decals

Charger: 6 Ports 1S Battery Charger & Adapter

Goggles: VR03 FPV Goggles

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

BT2.0 Series Accessories

FAQ

Download the FC firmware and CLI dump file for Meteor75 Pro.

Attention

Please note that warranty claims are limited to DOA (Dead on Arrival) units and manufacturer defects only. The product must be free from physical damage, scratches, missing components, or modifications. Crashes, improper handling, modifications, power surges, electrical fires, or water exposure will void the warranty. Physical crash damage is not covered under any circumstances. For further assistance, please contact our technical support team.

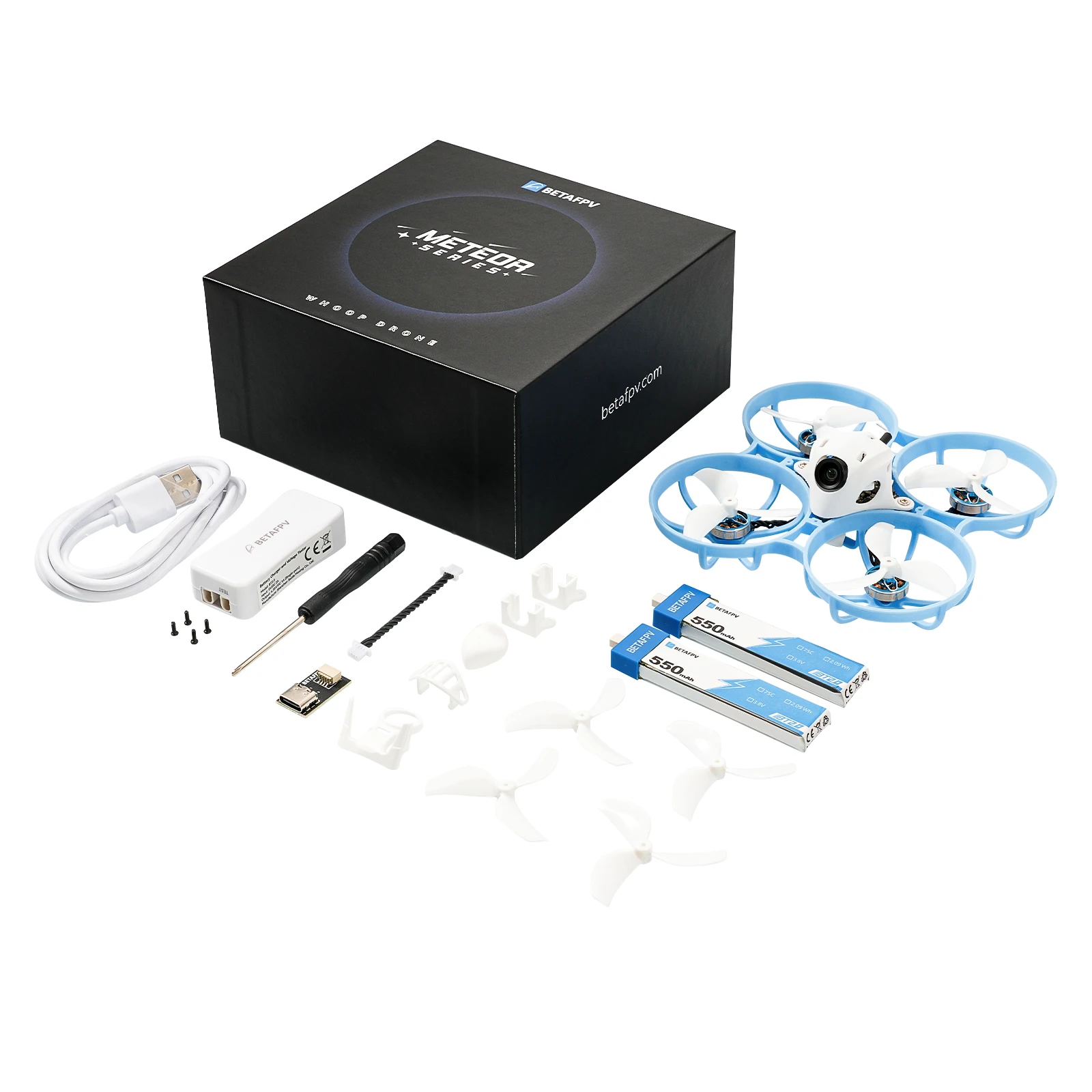

Package

1 * Meteor75 Pro Brushless Whoop Quadcopter

2 * BT2.0 550mAh 1S Battery

1 * Type-C USB Cable

1 * BT2.0 Battery Charger and Voltage Tester

1 * USB Type-C Adapter

1 * 4Pin Adapter Cable

4 * 45mm 3-Blade Props (1.5mm Shaft)

1 * Screwdriver

1 * Pack of Screws

1 * Accessories for Canopy
